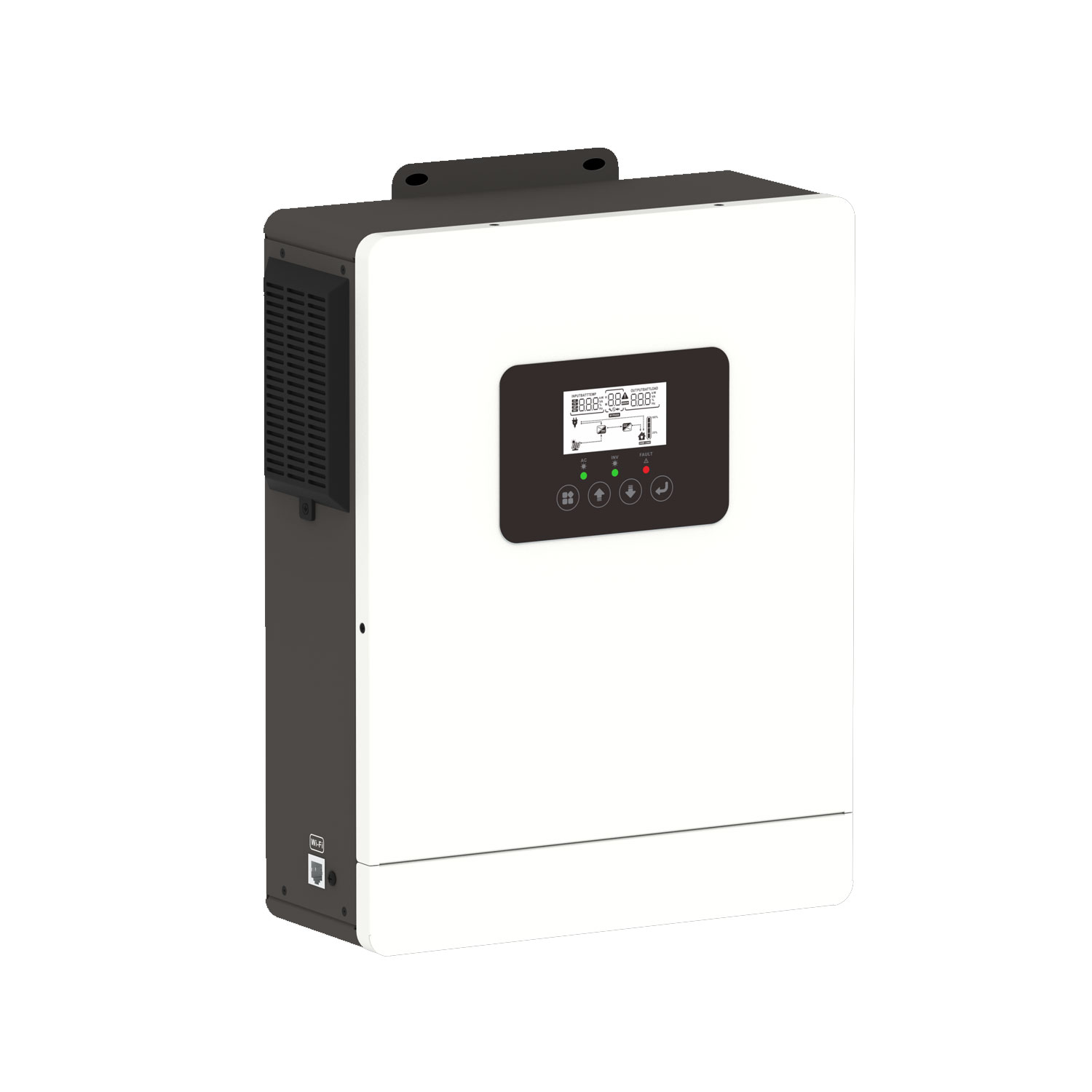

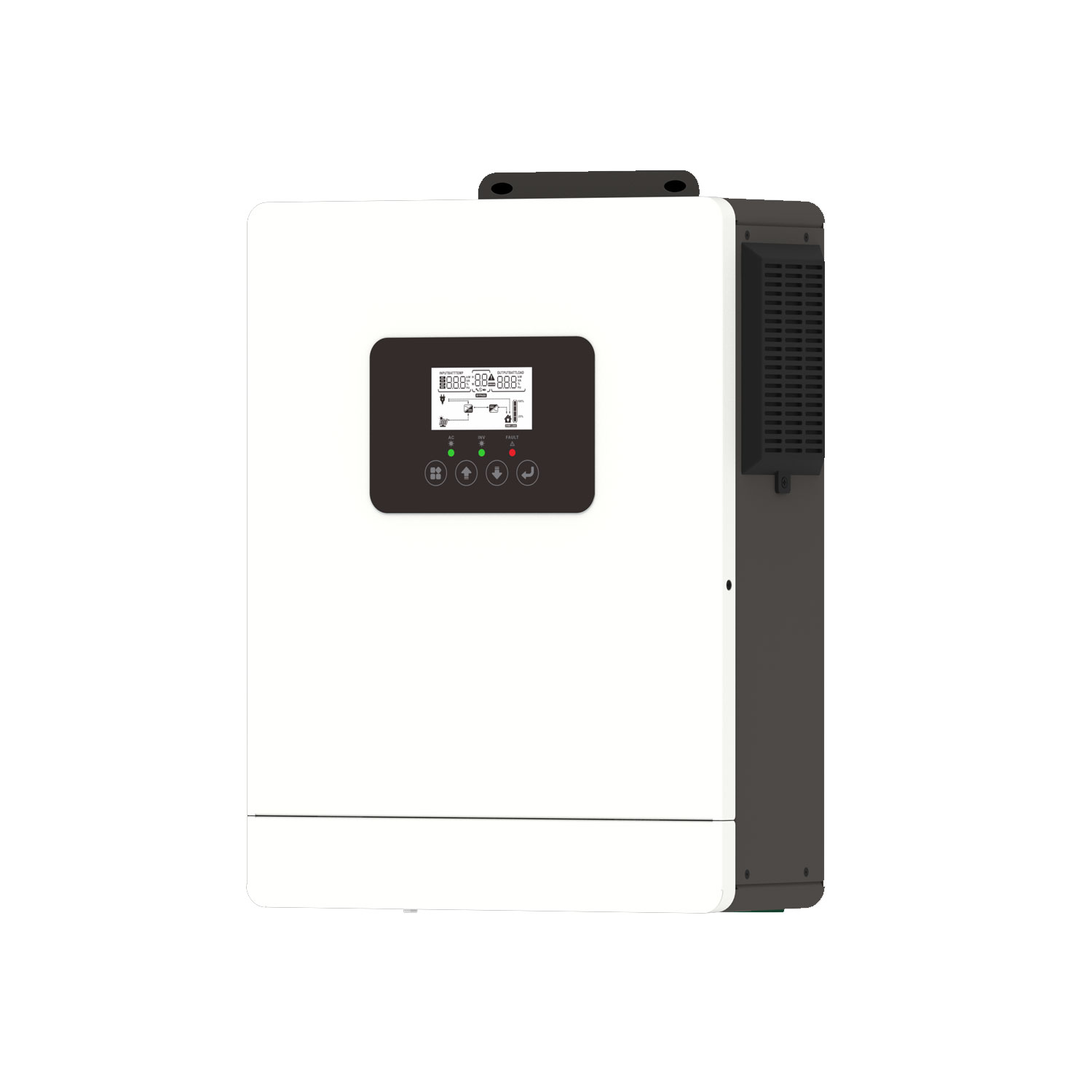

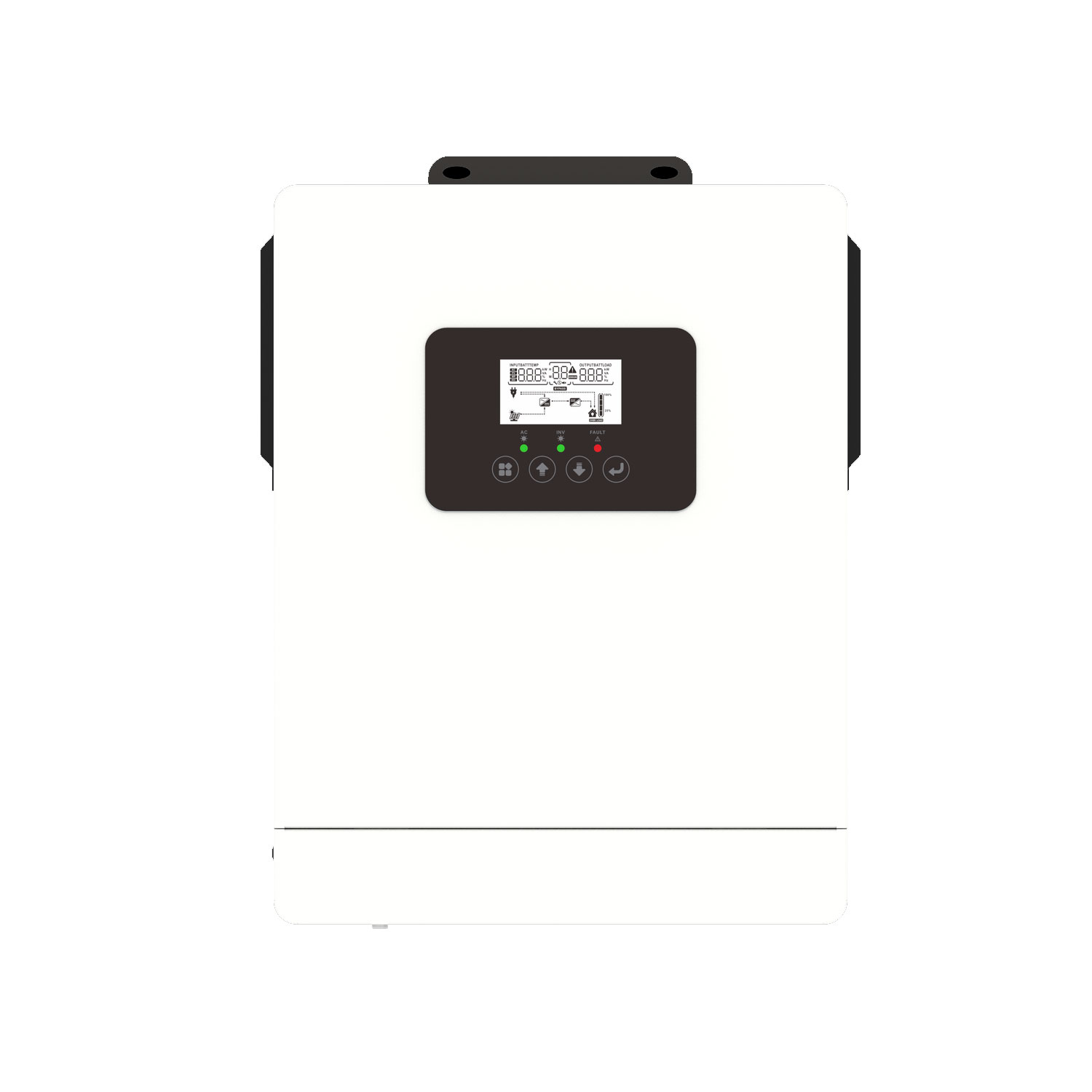

PV Inverter 1600watt Single Phase

MODEL	META-900watt	META-1600watt	META-2400watt
RATED POWER	900W	1600W	2400W
RUNNING MOTOR CAPACITY	1.5P	3P	1.5P+3P
PHASE	1-phase in/1-phase out
MAXIMUM PV INPUT POWER	900W	1600W	2400W
GRID-TIED OPERATION
PV INPUT (DC)
Maximum DC Voltage	500Vdc
Start-up Voltage	90Vdc
MPPT Voltage Range	60-450Vdc
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195.5-253VAC
Nominal Output Current	3.9A	7A	10.4A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	97%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	170-280VAC/180VAC (UPS)
Acceptable Input Voltage Range	90-280VAC (APL) or 170-280VAC (UPS)
Frequency Range	50Hz/60Hz (Auto sensing)
Maximum AC Input Current	3.9A	7A	10.4A
GENERAL
PHYSICAL
Dimension, D x W x H (mm)	360.7x278x106		360.7×310.6×107.3
Net Weight (kg)	3.8	5.1	6.6
INTERFACE
Communication Port	RS232/Wi-Fi
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
IP degree	IP21
Operating Temperature	-10℃~50℃
Storage Temperature	-15℃~60℃
