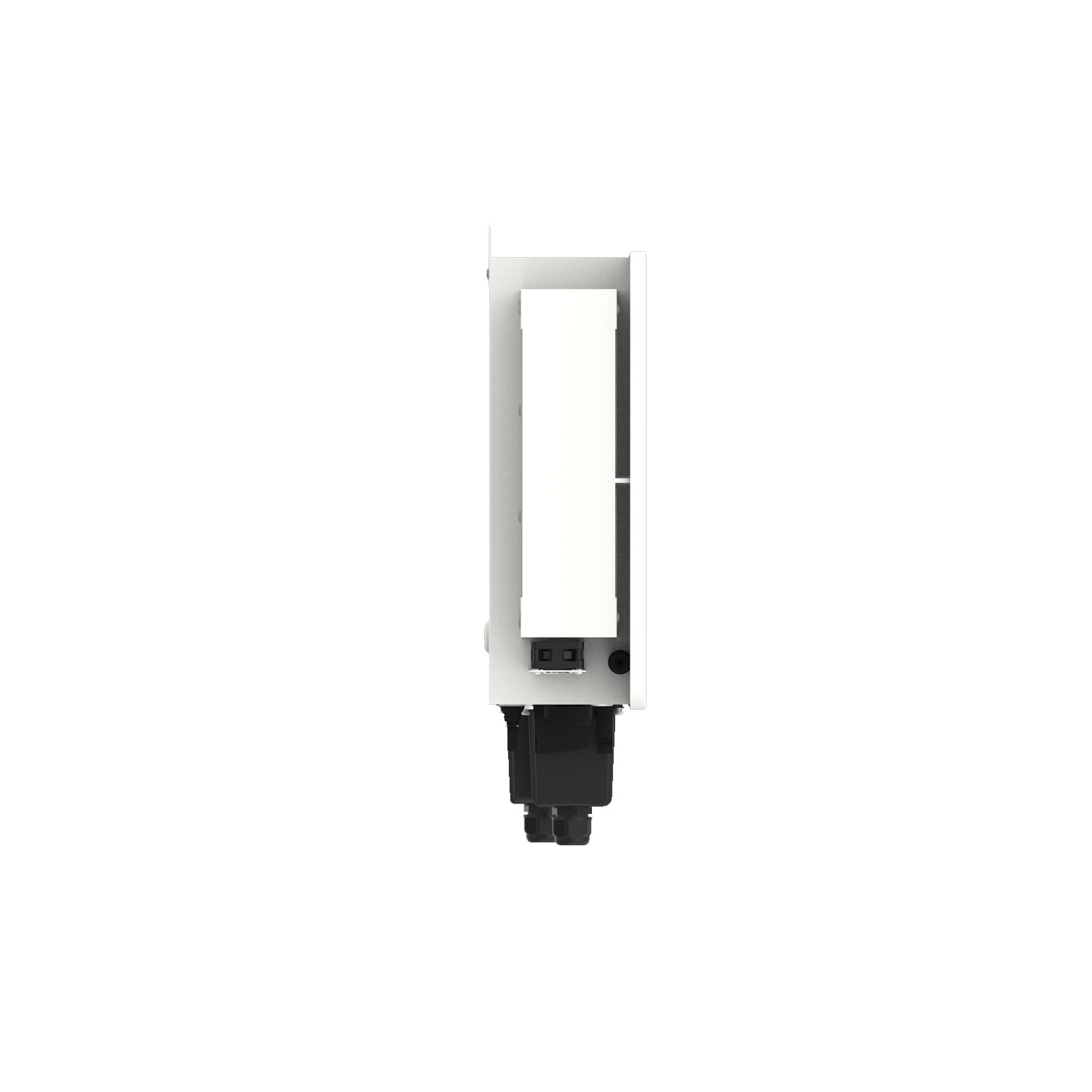

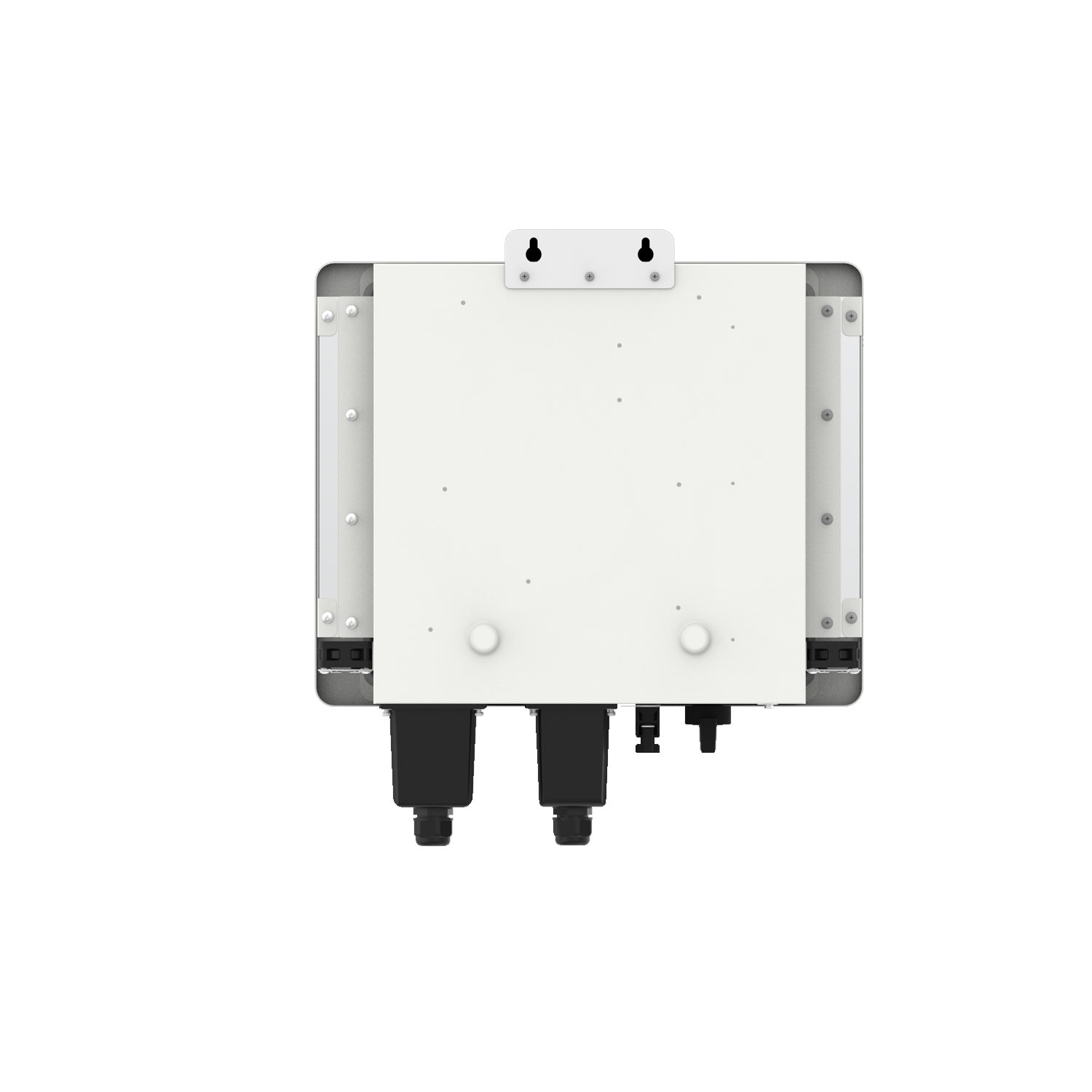

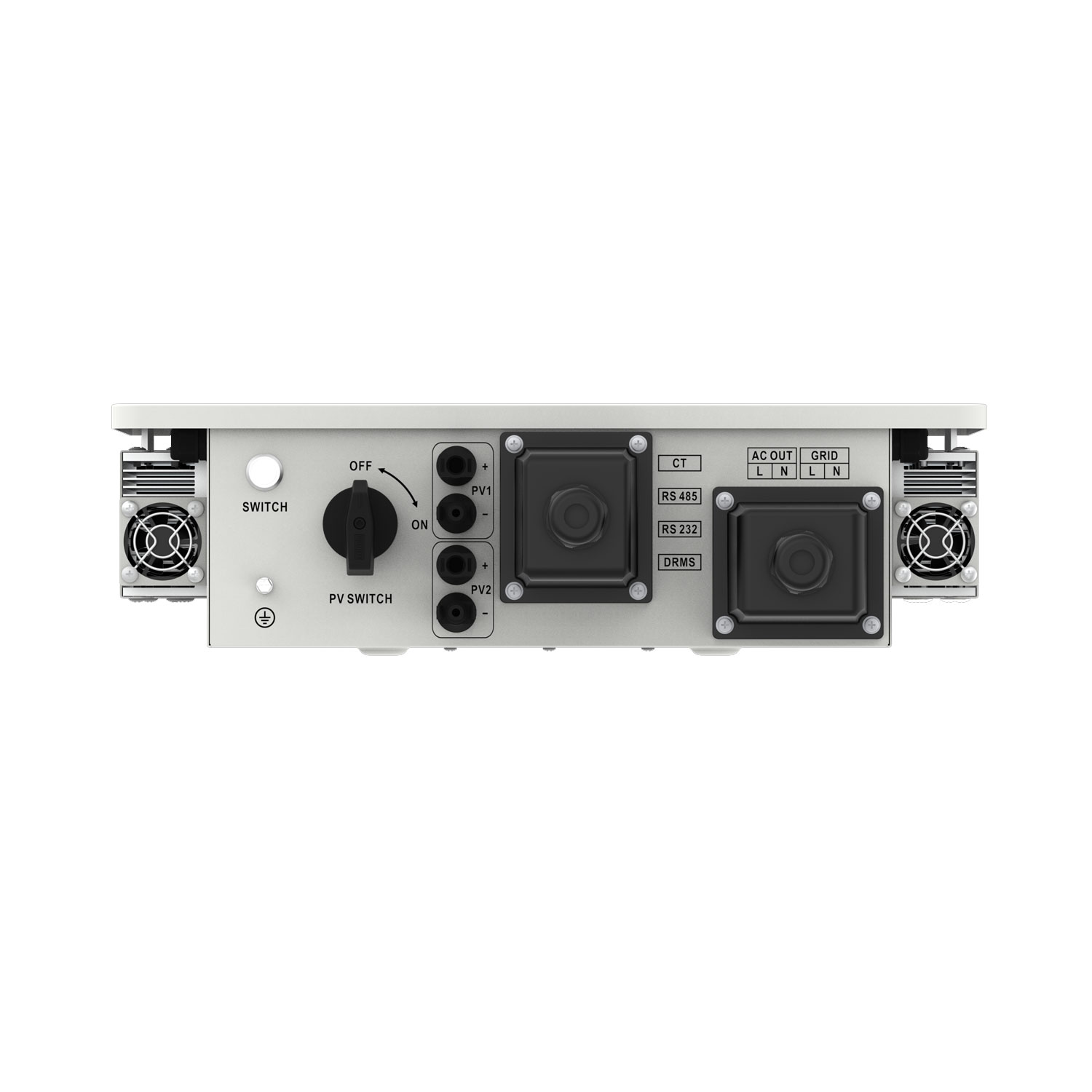

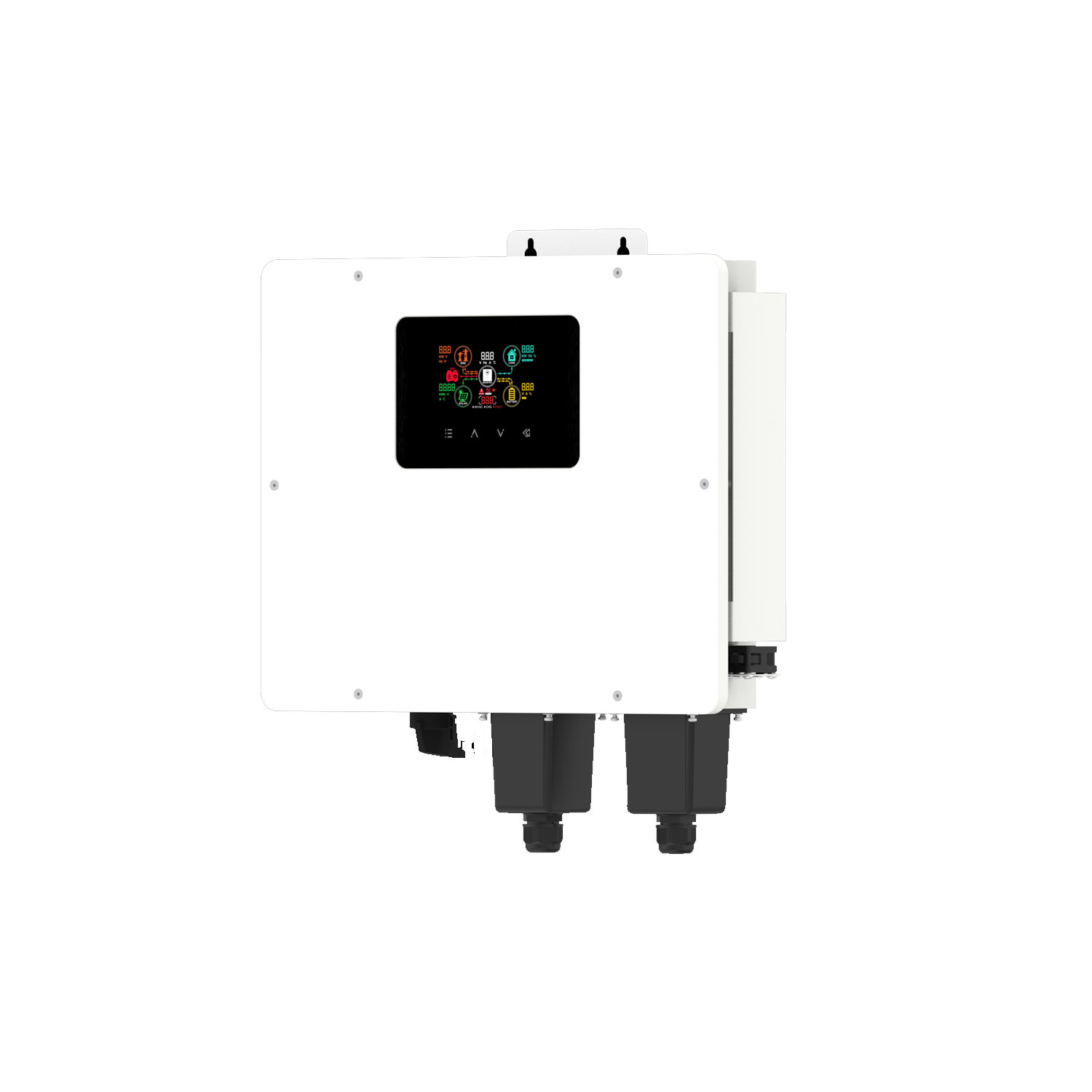

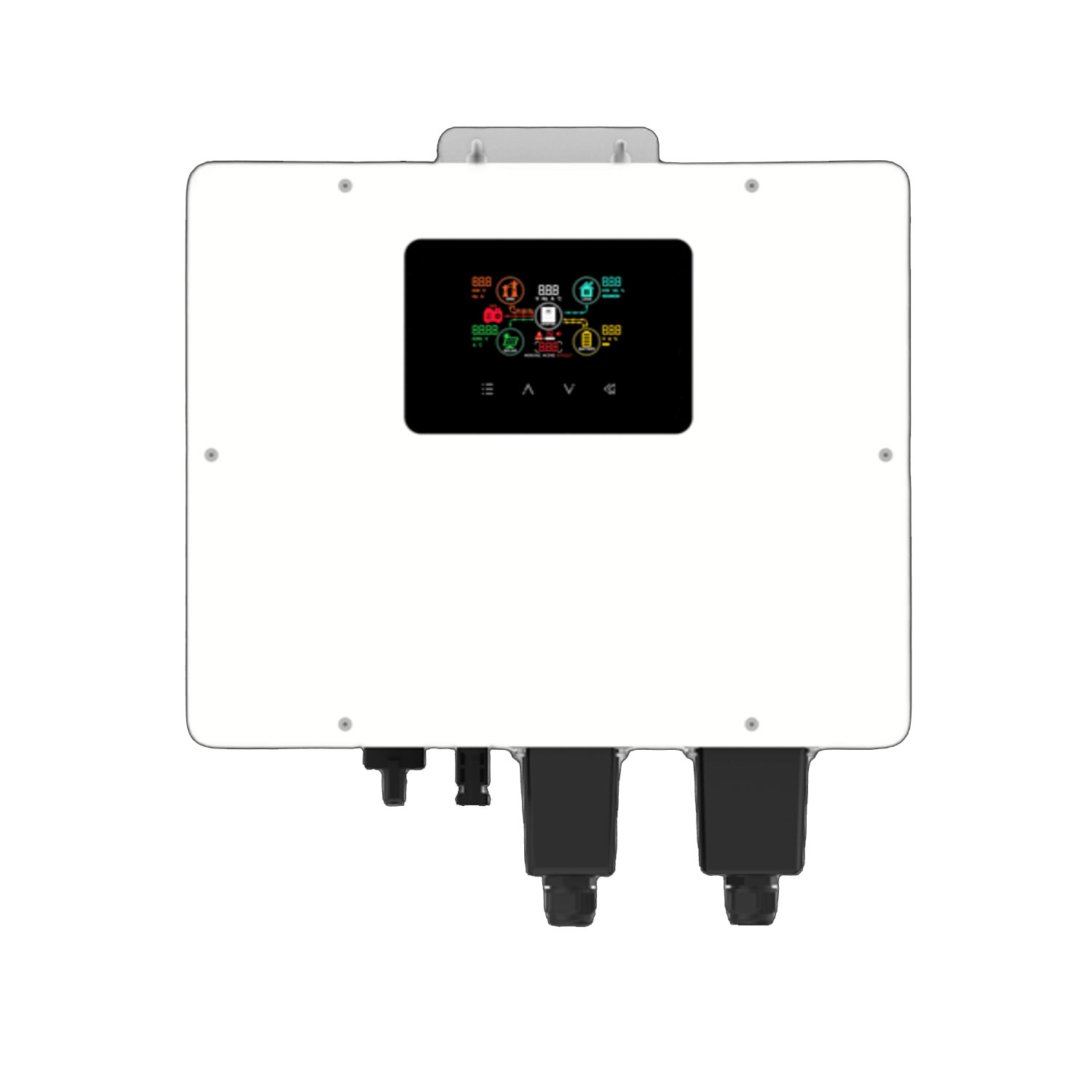

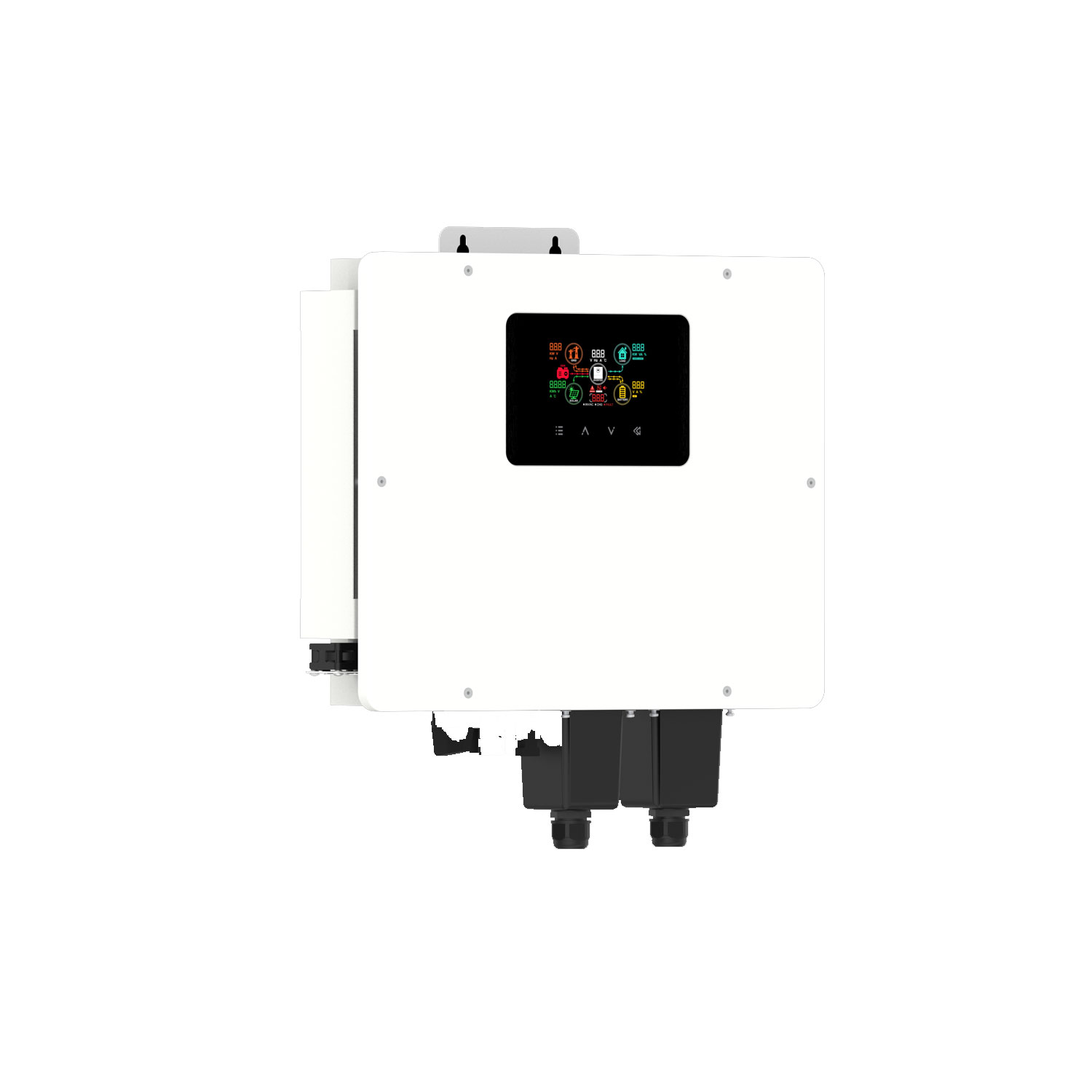

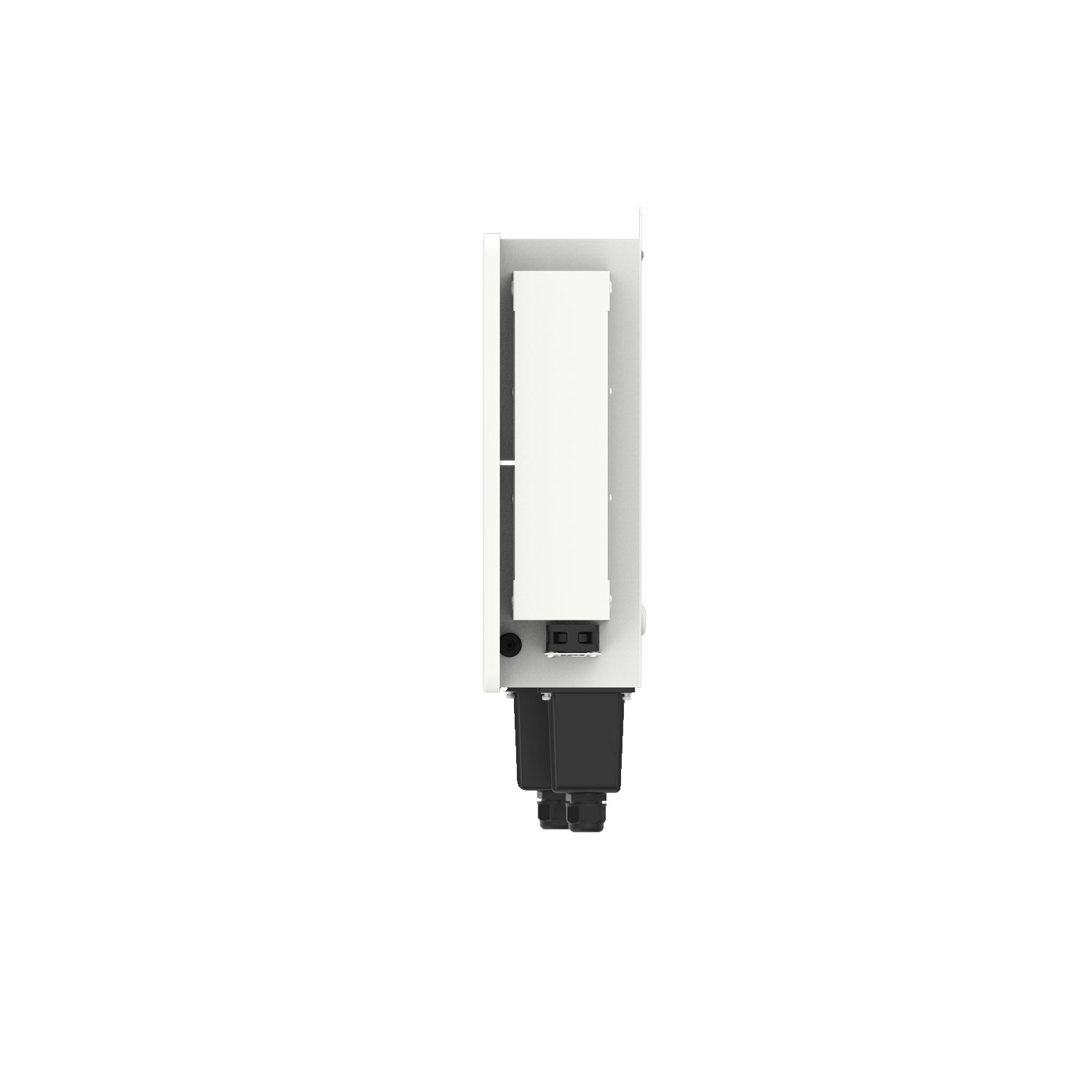

On-Grid Solar Inverter 4kW Single Phase

MODEL	MATE-4KW	MATE-6KW	MATE-10KW	MATE-15KW
Input (DC)
Max. Input Power	4.5kW	9kW	13.5kW	18kW
Max. Input Voltage	500Vdc
Start Voltage	90Vdc
Rated Input Voltage	360Vdc
MPPT Voltage Range	60Vdc – 450Vdc
Number of MPPT Trackers	1	2	3	4
Number of Strings per MPPT	1/1	1/2	1/3	1/4
Max. Current per MPPT	18A	18A×2	18A×3	18A×4
Max Short-Circuit Current per MPPT	23A
Output (AC)
Max. Output Current	17.5A	26.5A	43.5A	65.5A
Rated Output Power	4kW	6kW	10kW	15kW
Rated Grid Frequency	50Hz / 60Hz
Rated Grid Voltage	220Vac / 230Vac / 240Vac
Power Factor	>0.99
THDi	<3%
Efficiency
Max. Efficiency	98%	98%	98.3%	98.3%
European Efficiency	97%	97%	97.3%	97.3%
MPPT Efficiency	99%
Protection
DC Switch	Yes
DC Reverse Polarity Protection	Yes
Anti-islanding Protection	Yes
AC Short-Circuit Protection	Yes
Residual Current Monitoring Unit	Yes
Insulation Resistance Monitoring	Yes
Ground Fault Monitoring	Yes
Grid Monitoring	Yes
PV String Monitoring	Yes
Surge Protection	Yes
Communication
Display	Color LCD + LED + APP
Communication	RS485 / RS232 / Wi-Fi
Standard Compliance
Certification	IEC/62109-1/2, IEC/61000-1-3
General Data
Dimensions, D × W × H (mm)	431 × 414.5 × 97	480 × 425 × 122.5	495 × 435.5 × 128	502 × 446.5 × 133.5
Weight (kg)	10	12	17.5	23.5
Operating Temperature Range	-10°C ~ 60°C
Cooling Method	Fan / Smart Cooling
Protection Degree	IP65
Max. Operating Altitude	4000m
Humidity	5% to 95% Relative Humidity (Non-condensing)
Topology	Transformerless
