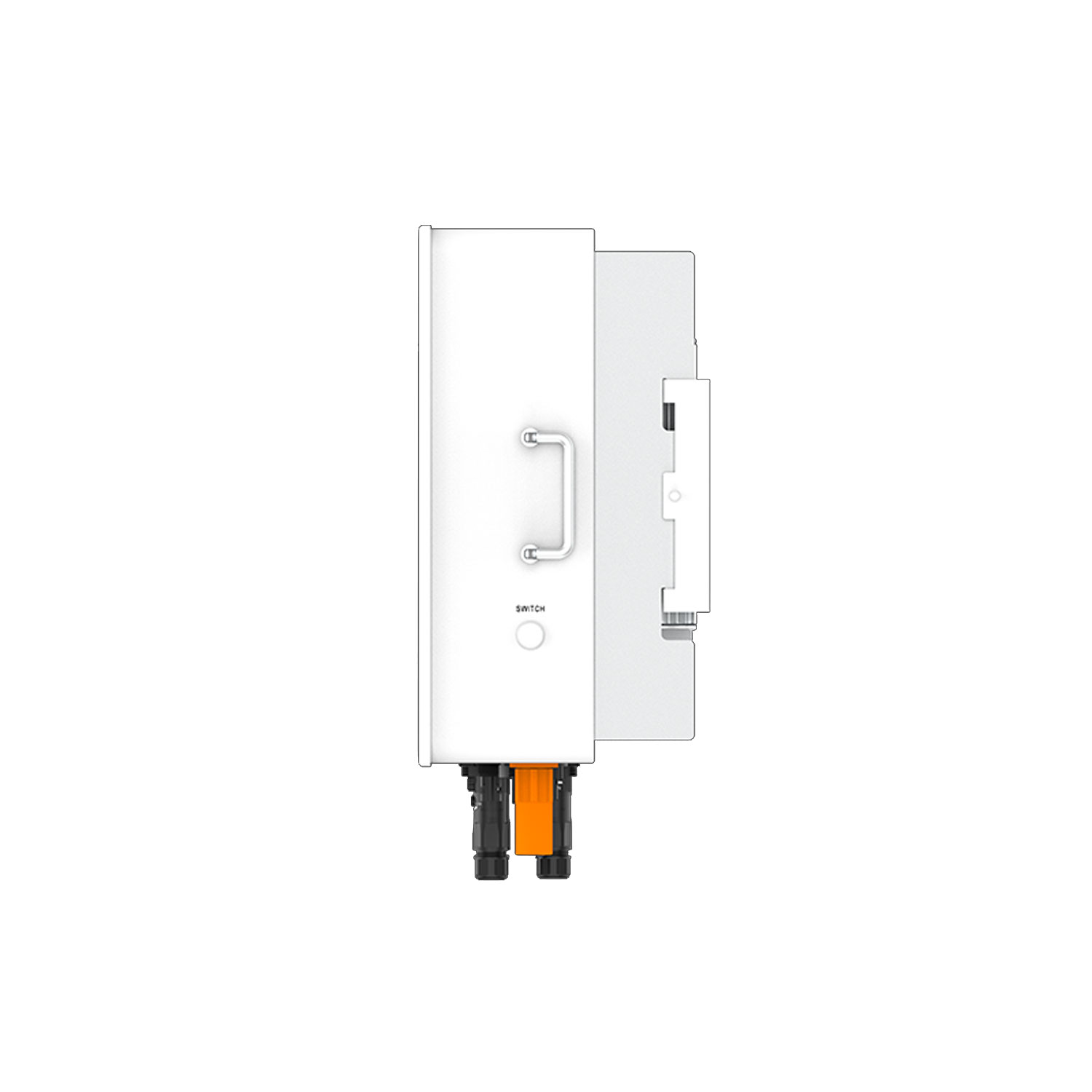

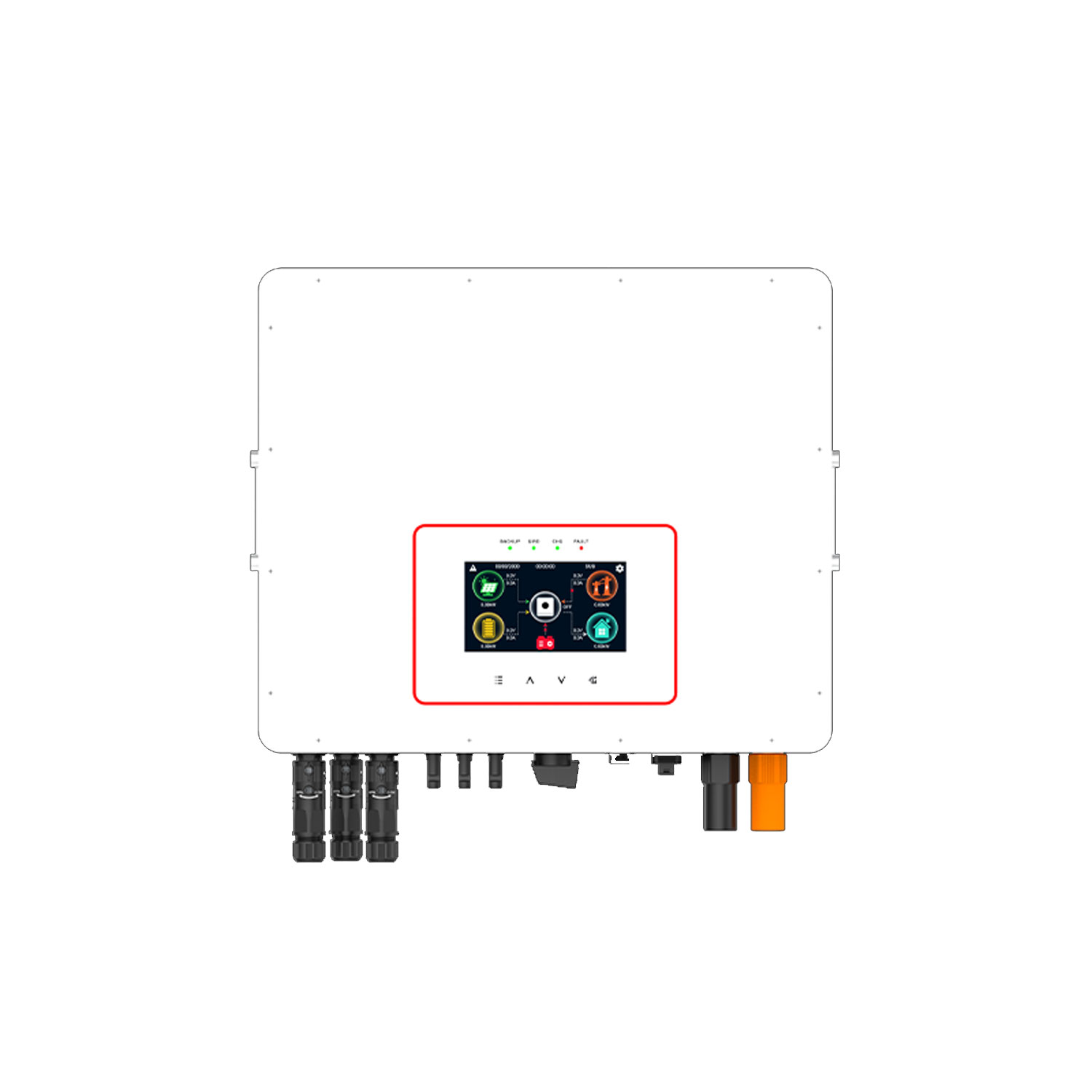

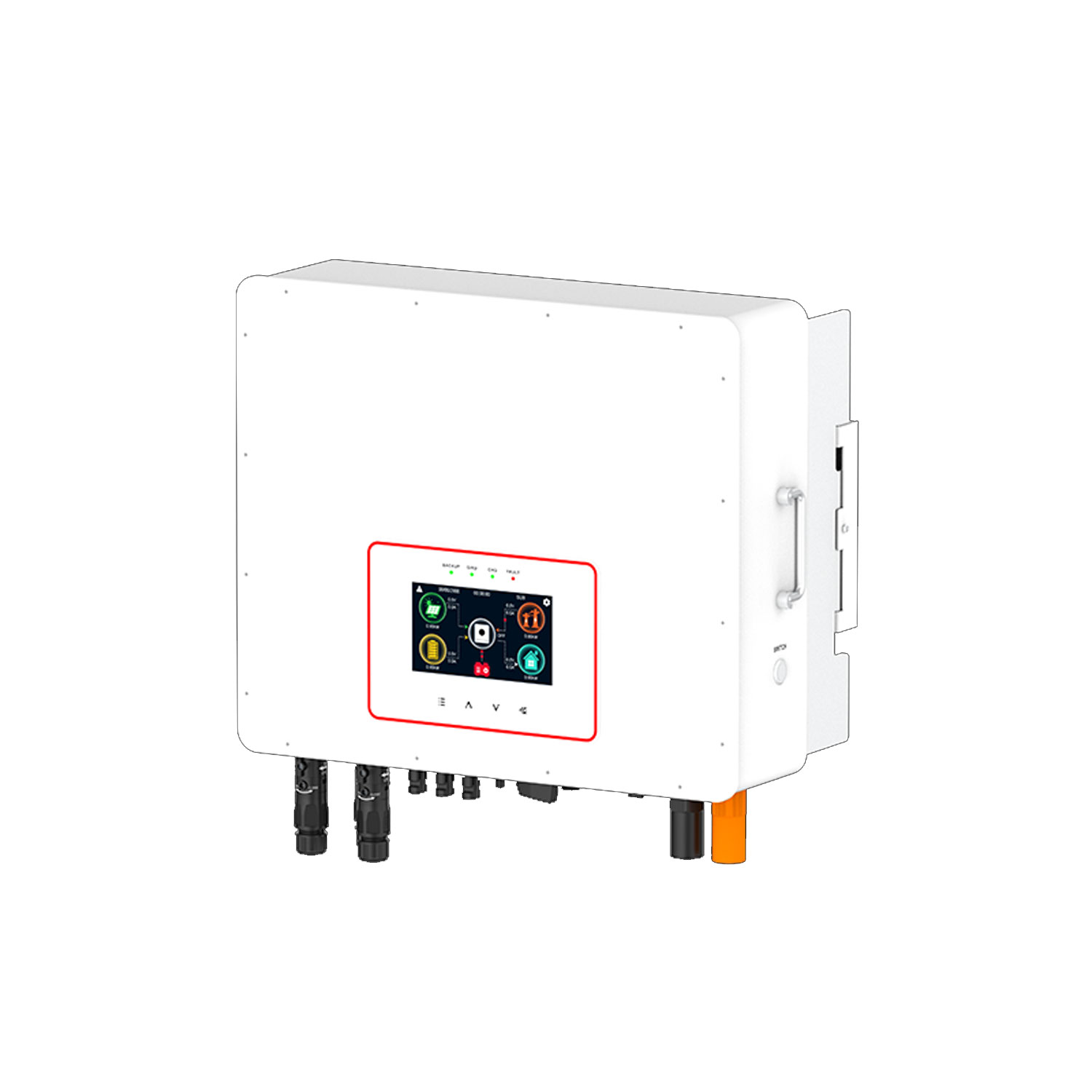

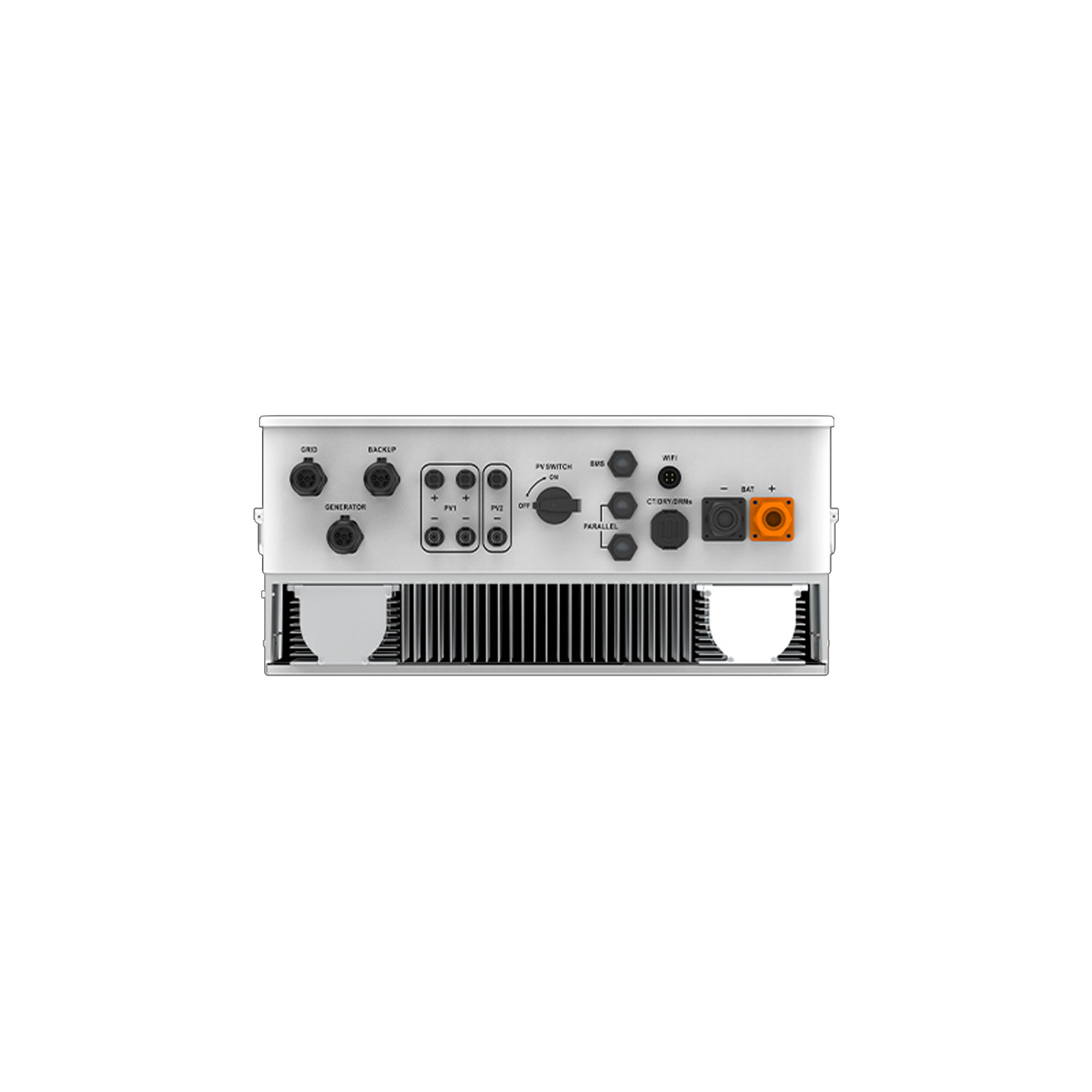

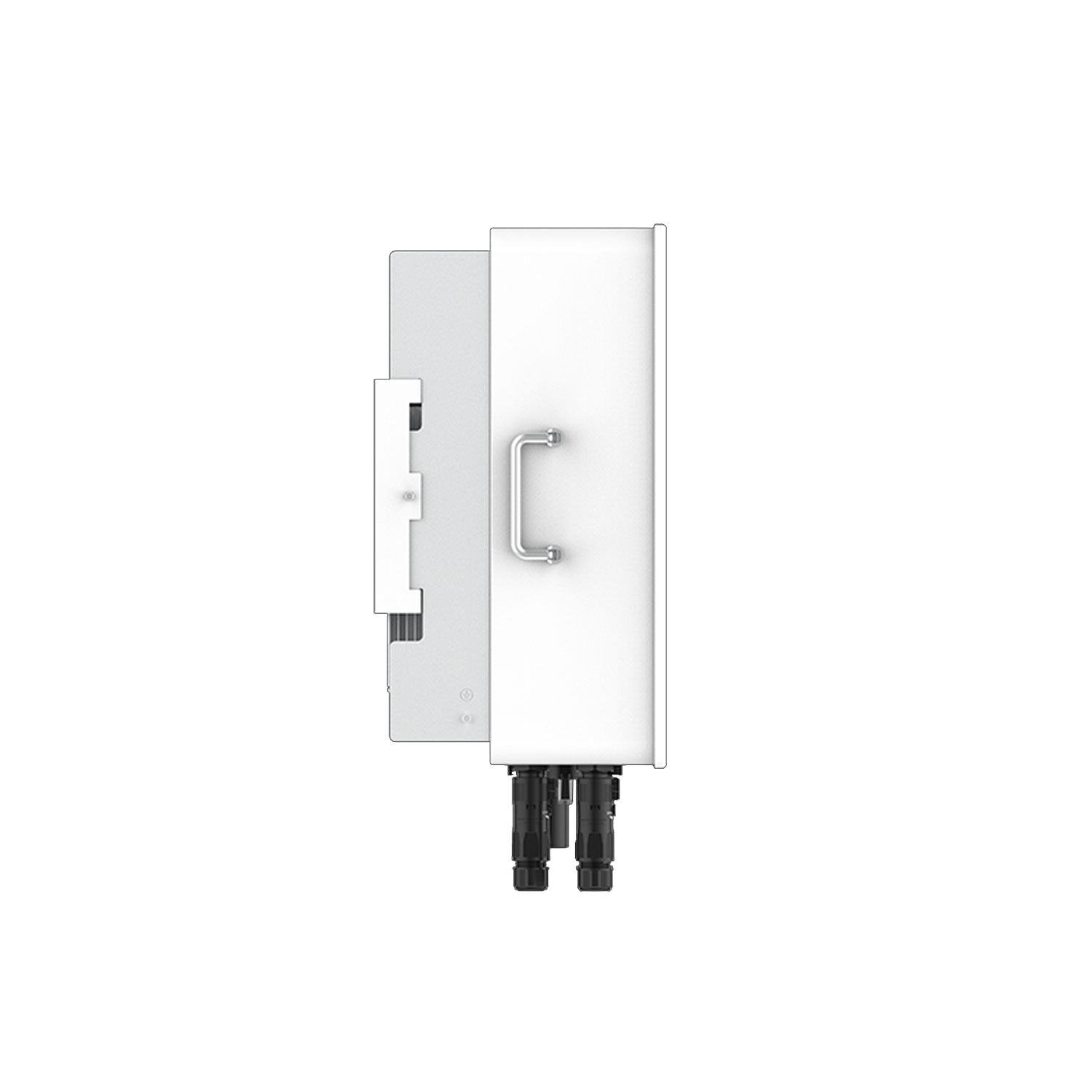

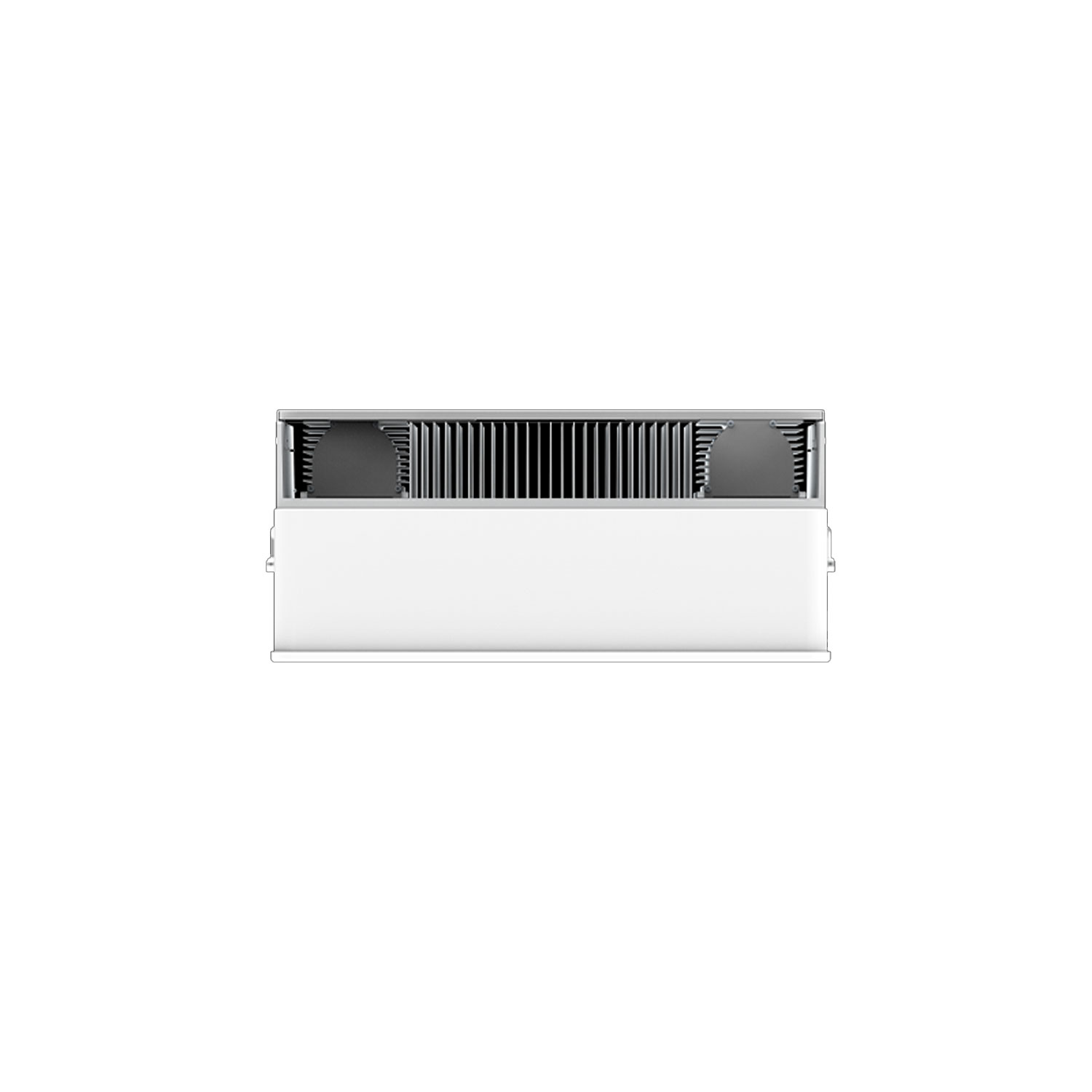

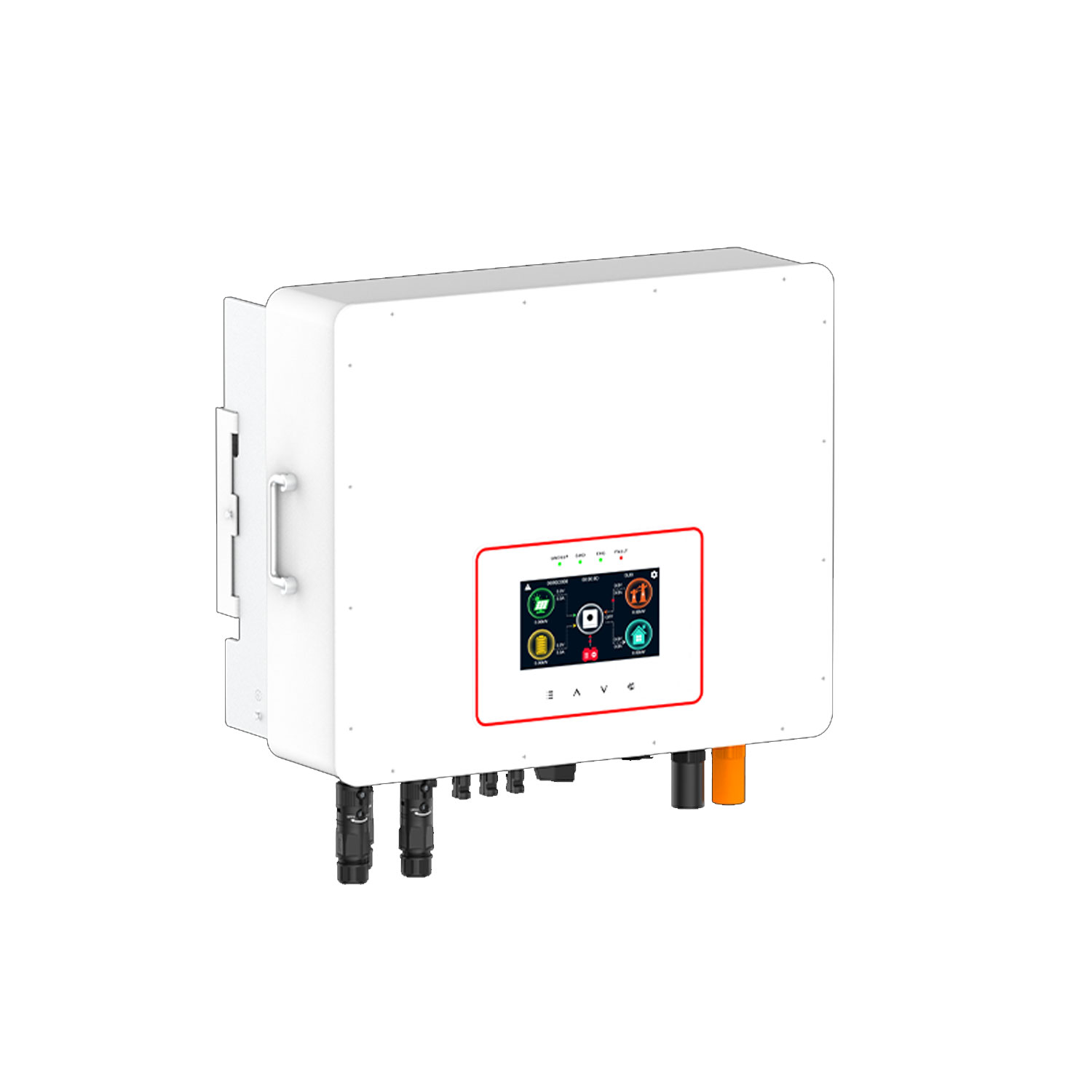

Hybrid Solar Inverter 10kW/12kW/14kW Three Phase
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 2
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 3
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 4
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 5
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 6
Hybrid Solar Inverter 10kW/12kW/14kW Three Phase - Image 7

Hybrid Solar Inverter 10kW/12kW/14kW Three Phase

Category:
MODEL MAGIC-10KW MAGIC-12KW MAGIC-14KW
PHASE 3-phase in / 3-phase out
MAXIMUM PV INPUT POWER 16200W
RATED OUTPUT POWER 10000W 12000W 14000W
MAXIMUM CHARGING POWER 10000W 12000W 14000W
GRID-TIED OPERATION
PV INPUT (DC)
Maximum DC Voltage 1000Vdc
Start-up Voltage / Initial Feeding Voltage 150Vdc / 200Vdc
MPPT Voltage Range 200Vdc – 800Vdc
Number of MPPT Trackers / Maximum Input Current 2 / 18A+36A 2 / 18A+36A 2 / 18A+36A
GRID OUTPUT (AC)
Nominal Output Voltage 230VAC (P-N) / 400VAC (P-P)
Output Voltage Range 184-265VAC per phase
Nominal Output Current 14.5A per phase 17.4A per phase 20.2A per phase
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 98%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140VAC per phase / 180VAC per phase
Acceptable Input Voltage Range 90-280VAC per phase
Frequency Range 50Hz / 60Hz (Auto-sensing)
Maximum AC Input Current 40A 50A 50A
PV INPUT (DC)
Maximum DC Voltage 1000Vdc
MPPT Voltage Range 200Vdc – 800Vdc
Number of MPPT Trackers / Maximum Input Current 2 / 18A+36A 2 / 18A+36A 2 / 18A+36A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 230VAC (P-N) / 400VAC (P-P)
Output Waveform Pure sine wave
Efficiency (DC to AC) 94%
HYBRID OPERATION
PV INPUT (DC)
Maximum DC Voltage 1000Vdc
Start-up Voltage / Initial Feeding Voltage 150Vdc / 200Vdc
MPPT Voltage Range 200Vdc – 800Vdc
Number of MPPT Trackers / Maximum Input Current 2 / 18A+36A 2 / 18A+36A 2 / 18A+36A
GRID OUTPUT (AC)
Nominal Output Voltage 230VAC (P-N) / 400VAC (P-P)
Output Voltage Range 184-265VAC per phase
Nominal Output Current 14.5A per phase 17.4A per phase 20.2A per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140VAC per phase / 180VAC per phase
Acceptable Input Voltage Range 90-280VAC per phase
Maximum AC Input Current 40A 50A 50A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 230VAC (P-N) / 400VAC (P-P)
Efficiency (DC to AC) 94%
BATTERY & CHARGER
Nominal DC Voltage 48Vdc
Maximum Solar Charging Current 220A 250A 250A
Maximum AC Charging Current 220A 250A 250A
Maximum Charging Current 220A 250A 250A
GENERAL
PHYSICAL
Dimension, D×W×H (mm) 572×653×550
Net Weight (kg) 48 52 58
INTERFACE
Parallel Function Yes, 9 units
Communication Port RS232 / RS485 / CAN / Wi-Fi / Dry contact
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
IP degree IP65
Operating Temperature -25°C ~ 60°C (>45°C power derating)
Storage Temperature -15°C ~ 60°C
