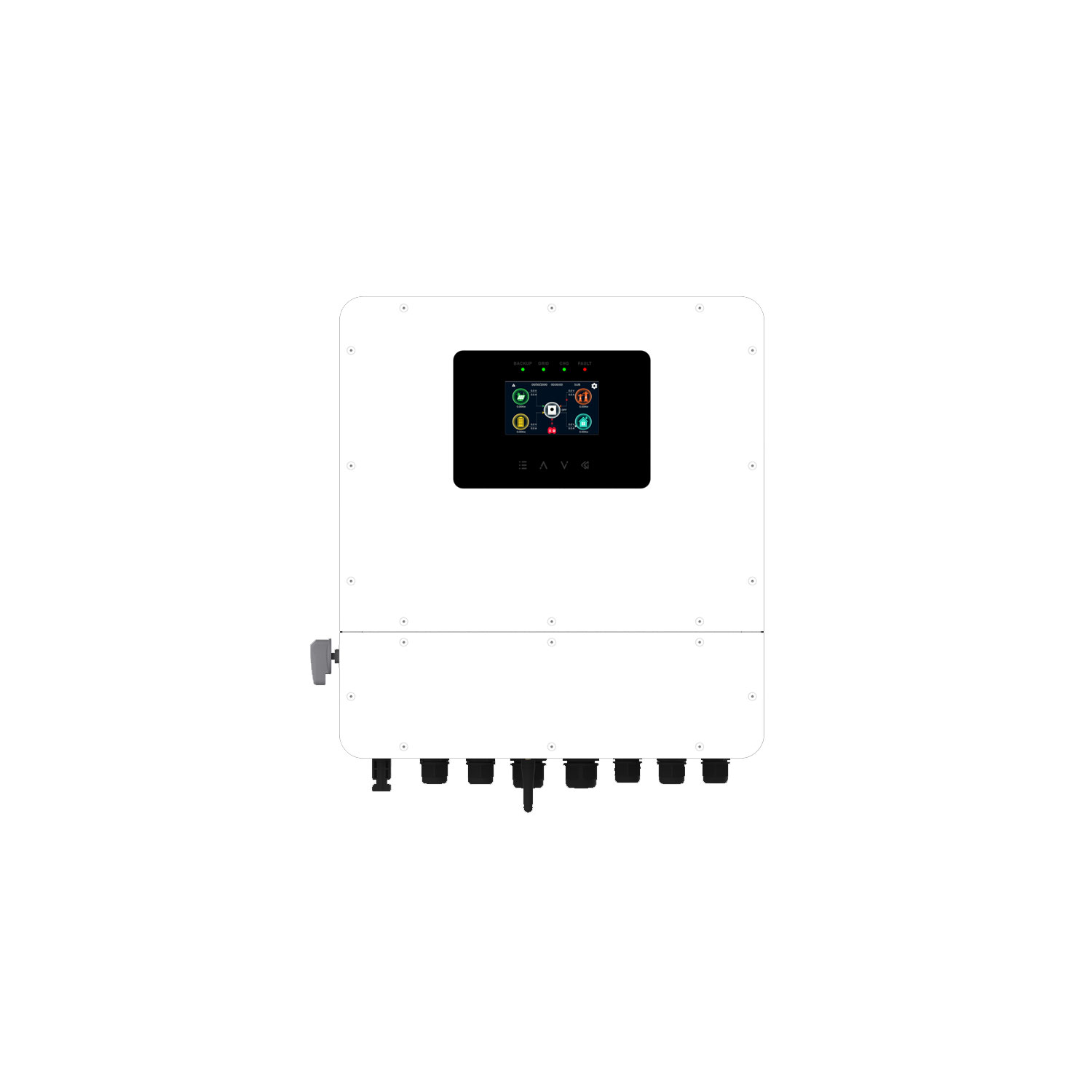

Hybrid Solar Inverter 6kW Single Phase
Hybrid Solar Inverter 6kW Single Phase - Image 2
Hybrid Solar Inverter 6kW Single Phase - Image 3
Hybrid Solar Inverter 6kW Single Phase - Image 4
Hybrid Solar Inverter 6kW Single Phase - Image 5
Hybrid Solar Inverter 6kW Single Phase - Image 6
Hybrid Solar Inverter 6kW Single Phase - Image 7
Hybrid Solar Inverter 6kW Single Phase - Image 8

Hybrid Solar Inverter 6kW Single Phase

Category:
MODEL MEGA-6KW MEGA-8KW MEGA-10KW MEGA-12KW MEGA-16KW
PHASE 1-phase in / 1-phase out
Maximum PV Input Power 9000 W 13500 W 16200 W 16200 W 21800 W
Rated Output Power 6000 W 8000 W 10000 W 12000 W 16000 W
Maximum Charging Power 6000 W 8000 W 10000 W 12000 W 14000 W (56 V)
GRID-TIED OPERATION
PV INPUT (DC)
Maximum DC Voltage 520 Vdc
Start-up Voltage / Initial Feeding Voltage 90 Vdc / 120 Vdc
MPPT Voltage Range 50 – 450 Vdc
Number of MPPT Trackers / Maximum Input Current 2 / 18 A 2 / 18 A + 36 A 2 / 18 A + 36 A 2 / 18 A + 36 A 3 / 18 A + 18 A + 36 A
GRID OUTPUT (AC)
Nominal Output Voltage 220 / 230 / 240 VAC
Output Voltage Range 184 – 264.5 VAC or 195.5 – 253 VAC or 184 – 264.4 VAC (Selectable)
Nominal Output Current 26.1 A 34.8 A 43.5 A 52.2 A 69.6 A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC / AC) 97%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 – 140 VAC / 180 VAC
Acceptable Input Voltage Range 90 – 280 VAC
Frequency Range 50 Hz / 60 Hz (Auto-sensing)
Maximum AC Input Current 40 A 50 A 60 A 70 A 100 A (Passthrough)
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220 / 230 / 240 VAC
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Nominal DC Voltage 48 Vdc
Maximum Solar Charging Current 135 A 190 A 220 A 250 A 250 A
Maximum AC Charging Current 135 A 190 A 220 A 250 A 250 A
GENERAL
PHYSICAL
Dimensions (D × W × H) (mm) 521 × 470 × 236 600 × 483 × 260 637.5 × 491 × 300.5
Net Weight (kg) 23.5 38 42 45 50
INTERFACE
Parallel Function Yes, up to 6 units

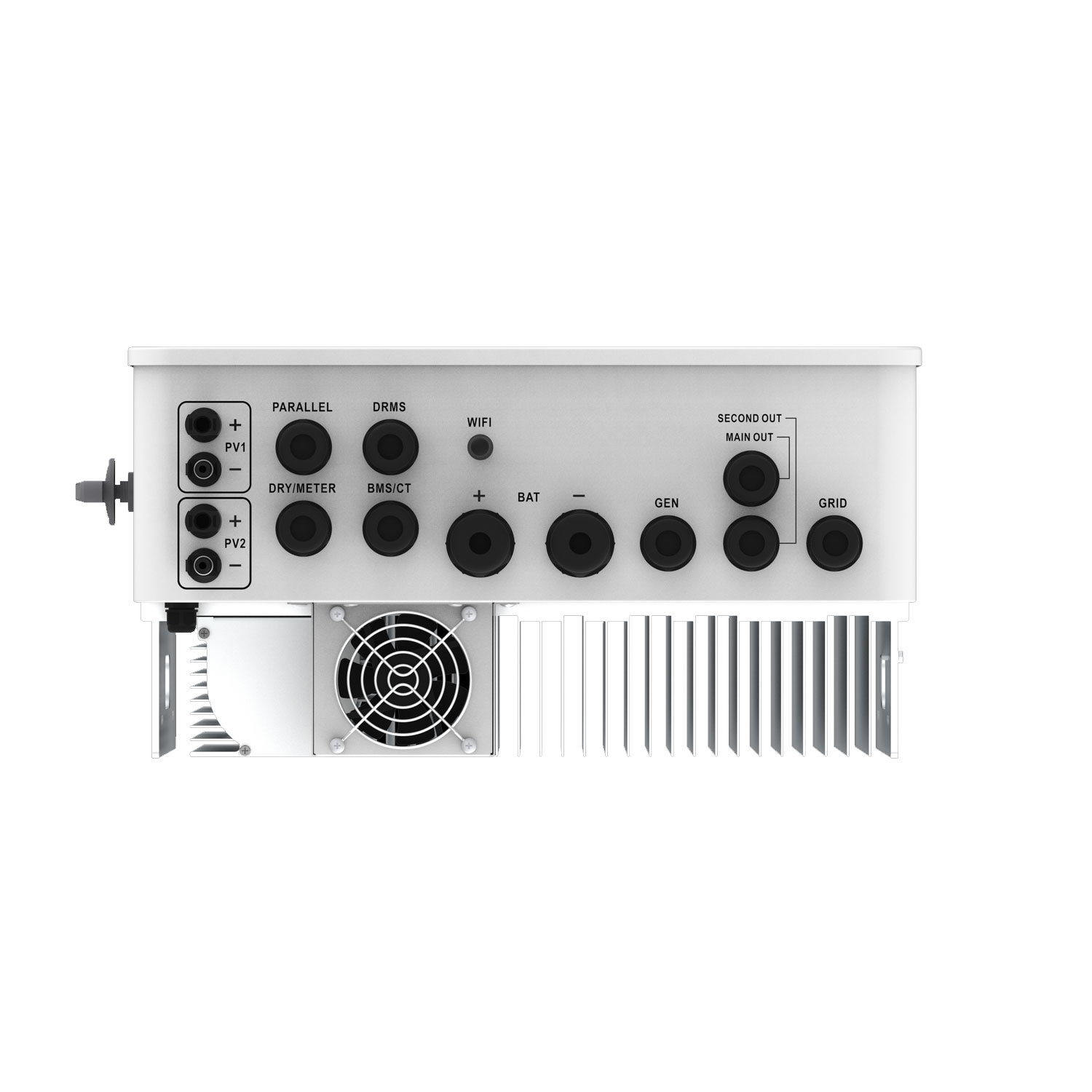

Communication Ports RS485 / CAN / Wi-Fi / Dry Contact
ENVIRONMENT
Humidity 5% – 95% Relative Humidity (Non-condensing)
IP Rating IP65
Operating Temperature -10 ℃ to 50 ℃
Storage Temperature -15 ℃ to 60 ℃
